High Power Directional Coupler 20CH170 (N-Female 700-2,700MHz)

  • Dec 19, 2014

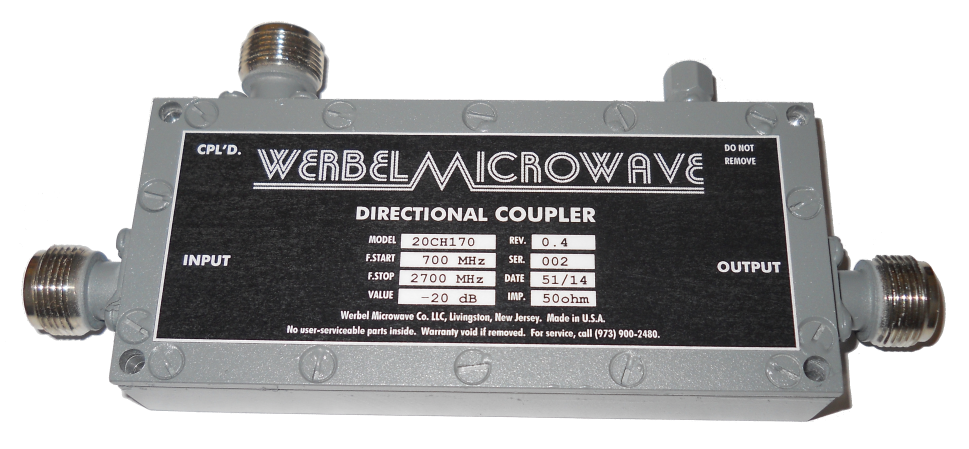

Werbel Microwave presents model 20CH170, a single directional coupler covering 700-2,700 MHz.  Coupling is 20±1.25 dB throughout the band with 22 dB minimum directivity and 1.2:1 return loss.  Rated at 100 watts.  Designed for low-PIM applications.  Standard with N-Female connectors.  Measures 4.5 x 2.0 x 0.8 inches.  Crafted in USA.
